FRW-600PF · 720PF · 1200PF · 1440PF
Semi-Contact Plate Freezer
Fast, even freezing for blocks and packed product. Plates contact the product on both faces, so the freezing time drops and the block holds its shape.
I — FEATURES
Built for production floors

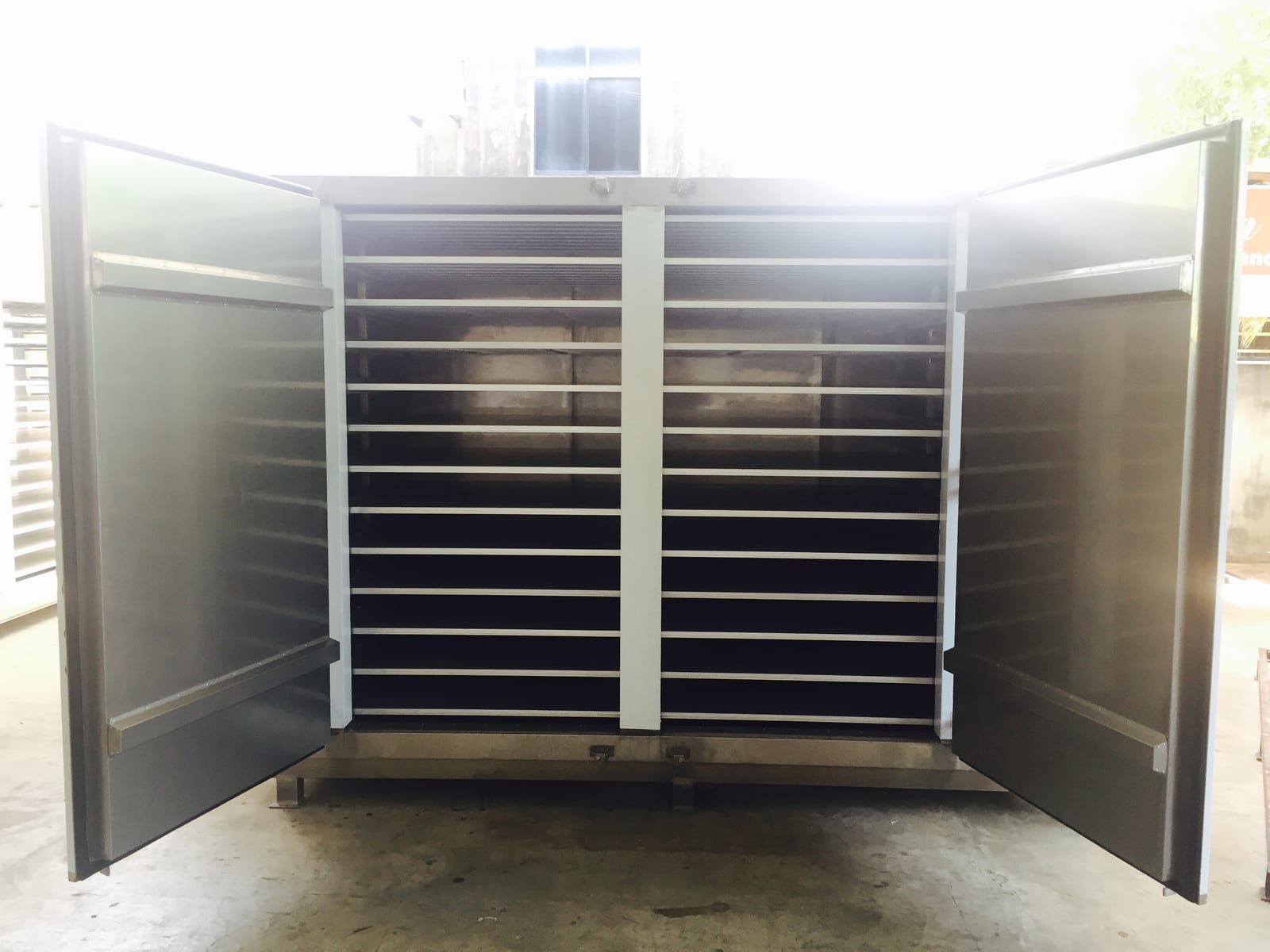

Aluminium freezing plates
Extruded plates with internal refrigerant channels for even surface temperature across the plate.
Two swing doors, one service door
Stainless steel handles and hinges, with a separate service door for access to the fans and coil.
Stainless steel casing
0.7 mm food-grade sheet over 100 mm polyurethane, on hot-dipped galvanised legs.
II — SPECIFICATIONS
Model range
Three-door configuration on every model: two swing doors and one service door. Send us your capacity and product type and we will confirm the model, plate count and refrigeration duty.
CASING
0.7 mm stainless steel sheet, galvanised steel stand
INSULATION
100 mm (4″) polyurethane on all models
PLATE
Aluminium alloy extruded plate, liquid line c/w TXV
| SPECIFICATION | FRW-600PF | FRW-720PF | FRW-1200PF | FRW-1440PF |
|---|---|---|---|---|
| Freezing capacity — fish | 600 kg 60 tray × 10 kg |
720 kg 72 tray × 10 kg |
1,200 kg 120 tray × 10 kg |
1,440 kg 144 tray × 10 kg |
| Freezing capacity — shrimp / prawn | 280 kg 140 tray × 2 kg |
302.4 kg 168 tray × 1.8 kg |
560 kg 280 tray × 2 kg |
604.8 kg 336 tray × 1.8 kg |
| Number of plates | 10 tiers (11 pcs) | 12 tiers (13 pcs) | 10 tiers (11 pcs) | 12 tiers (13 pcs) |
| Freezing plate size | 2385 × 508 mm | 2385 × 508 mm | 2385 × 1016 mm | 2385 × 1016 mm |
| Tier pitch | 140 mm (5½″) | 133 mm (5-1/4″) | 140 mm (5½″) | 133 mm (5-2/5″) |
| Freezing time — fish | 300–360 min (5–6 hrs) | 300–360 min (5.5–6.5 hrs) | 300–360 min (5–6 hrs) | 360–420 min (6–7 hrs) |
| Freezing time — shrimp / prawn | 165–210 min (2.75–3.5 hrs) | 165–210 min (3–4 hrs) | 165–210 min (2.75–3.5 hrs) | 165–210 min (3–4 hrs) |
| Evaporating temperature | −30 °C fish / −35 °C shrimp | −30 °C fish / −40 °C shrimp | −30 °C fish / −35 °C shrimp | −30 °C fish / −40 °C prawn |
| Condensing unit | 1 unit 15 H.P. | 1 unit 15 H.P. single-stage | 1 unit 30 H.P. | 1 unit 30 H.P. two-stage |
| Refrigerant | R507 | R507 | R507 | R502 or R507 |
| Axial fan / suction line | 350 mm × 2 · 1-5/8″ | 14″ × 2 · 1-5/8″ | 500 mm × 2 · 2-1/8″ | 20″ × 2 · 2-1/8″ |
| Overall dimensions | 3200 × 736 × 2050 H mm | 3200 × 736 × 2337 H mm | 3200 × 1244 × 2057 H mm | 3200 × 1244 × 2336 H mm |
Need a plate freezer sized for your line?
Send us your product, batch size, target temperature and plant location. We reply with a model, specification and price.
