FRW-3T-PI · 5T-PI · 10T-PI

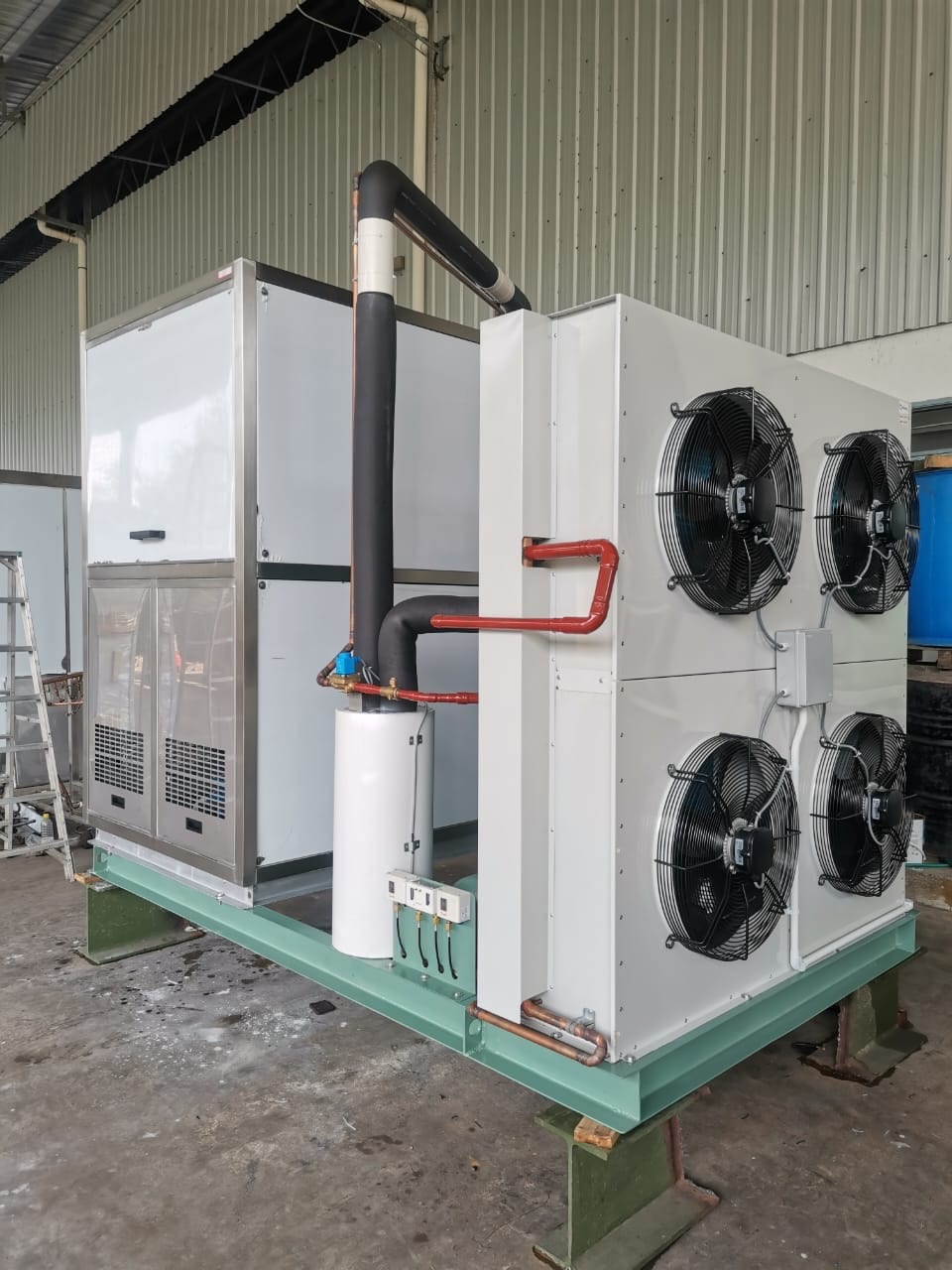

Plate Ice Machine
Dry, hard plate ice from 3 to 10 tonnes a day. Water freezes on stainless steel plates, then a stainless crusher breaks the sheet into flakes that fall straight to the ice outlet.
I — FEATURES
Ice that keeps its shape on the floor
SUS 304 freezing plates
9 to 28 plates at 997 × 610 mm, food-grade stainless throughout the water path.
Stainless steel ice crusher
Breaks the harvested sheet into dry flakes and discharges through the ice outlet below.
20 to 25 minute cycle
Short freezing cycle at −15 °C evaporating temperature keeps daily output steady.
II — SPECIFICATIONS
Model range
Three models, chosen by the tonnes of ice your floor consumes per day. Send us your daily requirement and site location and we will confirm the model and refrigeration duty.
PLATE
SUS 304 stainless steel, 997 × 610 mm (39½″ × 24″ H)
EVAPORATING TEMP
−15 °C on all models
REFRIGERANT
R507, Bitzer condensing units
| SPECIFICATION | FRW-3T-PI | FRW-5T-PI | FRW-10T-PI |
|---|---|---|---|
| Ice capacity | 3,000–3,500 kg / day | 5,000–5,500 kg / day | 10,000–11,000 kg / day |
| Freezing capacity | 27.5 kW/hr | 42.3 kW/hr | 84.6 kW/hr |
| Number of plates | 9 pcs | 14 pcs | 28 pcs |
| Freezing plate size | 997 × 610 mm | 997 × 610 mm | 997 × 610 mm |
| Freezing time | 20–25 mins | 20–25 mins | 20–25 mins |
| Evaporating temperature | −15 °C | −15 °C | −15 °C |
| Condensing unit | 1 unit Bitzer 4HE-25Y | 1 unit Bitzer 6HE-35Y | 2 units Bitzer 6HE-35Y |
| Refrigerant | R507 | R507 | R507 |
| Service door | Two service doors | Four service doors | Four service doors |
| Overall dimensions | 1397 × 1651 × 1880 H mm 55″ × 40″ × 74″ H |
1397 × 1651 × 2057 H mm 55″ × 65″ × 81″ H |
2895 × 1651 × 2184 H mm 110″ × 65″ × 90″ H |
All models: SUS 304 stainless steel freezing plates, stainless steel ice crusher and ice outlet. The 10T-PI is built as a twin bank with two ice outlets. Output is stated per day and depends on inlet water temperature and ambient conditions.
How much ice does your floor need?
Send us your daily tonnage, water supply and plant location. We reply with a model, specification and price.
